Photo 1 of 5

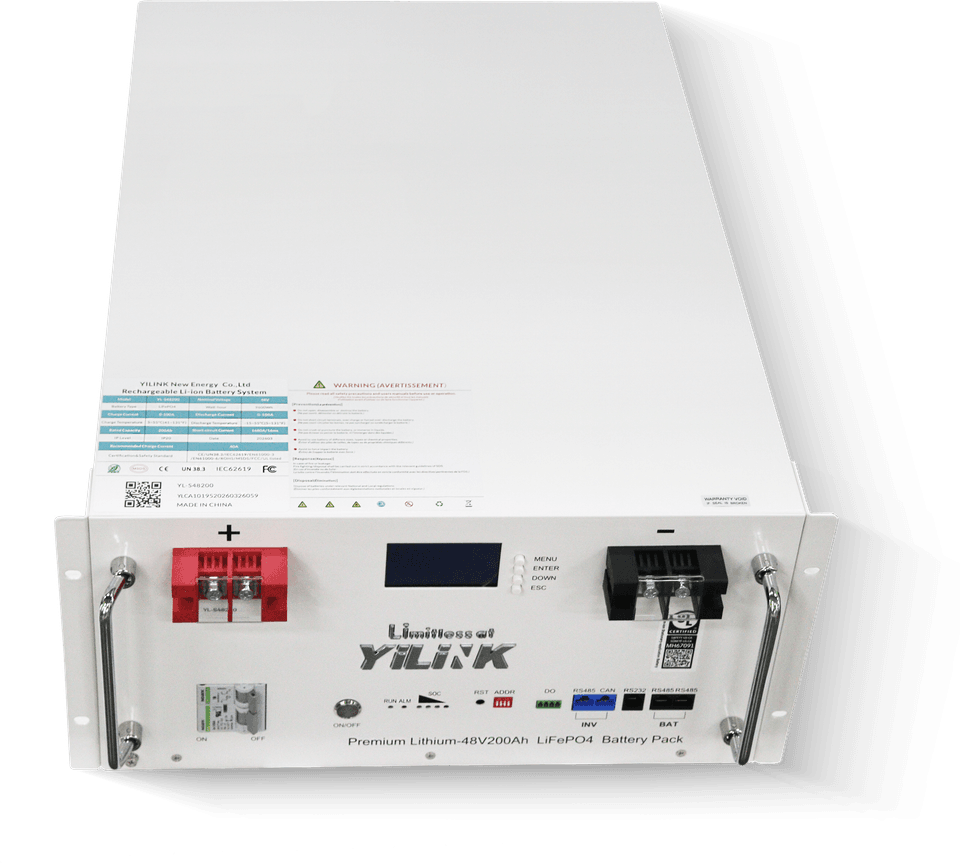

Yilink iPower S48200
48 V rack LiFePO4 battery — 200 Ah, 9.6 kWh
The S48200 drops into a standard 19-inch rack or stacks directly on the floor. It is the form factor for plant rooms, light commercial sites and agricultural installations where density and serviceability matter more than looks.
- Nominal energy
- 9.6 kWh Nominal energy
- Nominal capacity
- 200 Ah Nominal capacity
- Cycle life
- 6,000+ Cycle life
- Max. output power
- 4.8 kW Max. output power
The same electrical platform as the W48200 — brand-new Grade A cells, Panasonic BMS, more than 6,000 cycles — in a chassis built for racking and incremental expansion: up to 15 units in parallel, or 144 kWh on a single bus.
Highlights
- Standard 19-inch rack or direct floor stacking
- Brand-new Grade A LiFePO4 cells — maximum safety and longevity
- Intelligent BMS with Panasonic IC — protection from cell to pack
- Expandable to 15 units in parallel (144 kWh)
- Side handles and front-facing connectors for servicing
- CAN, RS485, RS232 and dry-contact communication
- Two ANSI/CAN/UL 1973 certificates — United States and Canada, plus UL 9540A
- 10-year manufacturer warranty
Installation
- Type
- Indoor 19-inch rack or direct stacking
- Servicing
- Front-facing connectors and display
- Environment
- Indoor, dry and ventilated — IP31
Technical specifications
| Chemistry | Lithium iron phosphate (LiFePO4) |
|---|---|
| Cells | Brand-new Grade A, premium quality |
| Nominal voltage | 48 V (range: 37.5 – 54.75 V) |
| Nominal capacity | 200 Ah |
| Nominal energy | 9.6 kWh |
| Max. output power | 4.8 kW |
| Recommended charge current | 40 A |
| Max. continuous charge current | 100 A |
| Max. continuous discharge current | 100 A |
| Charge/discharge efficiency | ≥ 99.5% @ 0.2C |
| Monthly self-discharge | ≤ 2% @ 25 °C |
| Cycle life | More than 6,000 cycles (0.2C, 80% DoD, 25 °C) |
| Design life | 10 to 15 years |
| Charging temperature | 0 to 55 °C |
| Discharging temperature | −20 to 60 °C |
| IP rating | IP31 (indoor) |
| BMS | Intelligent, high-precision Panasonic IC, multiple protections from cell to pack |
| Communication | CAN / RS485 / RS232 / dry contact |
| Parallel capability | Up to 15 units (expandable to 144 kWh) |
| Net weight | 74 kg |
| Dimensions (W × D × H) | 442 × 450 × 230 mm |
| Installation | Indoor 19-inch rack or stackable |
| Warranty | 10 years, manufacturer |
Certifications and safety
- UL 9540A
- UL 1973
- UN 38.3
- RoHS
- IEC 62619
- CE-IEC 61000
- IEC 62040
- MSDS
UL file MH67091
- United States
- UL-US-2434727-0
- Canada
- UL-CA-2426862-0
- Issue date
- 2024-09-06
Warranty and support
10-year manufacturer warranty. Technical support and after-sales service provided by Yilink Canada, with a reply within 24 hours and direct access to the factory engineers.
Compatible inverters
Proven communication with the main hybrid and off-grid inverters:
- Deye
- Growatt
- Sol-Ark
- SunSynk
- Victron
- Voltronic
- Goodwe
- Luxpower
- Sofar
- SMA
- Schneider
- Solis
- TBB
- INVT
