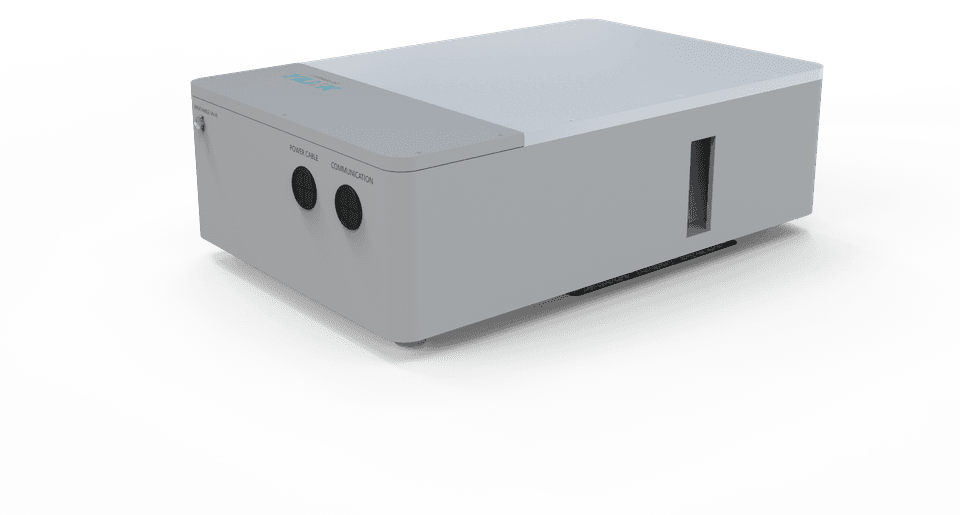

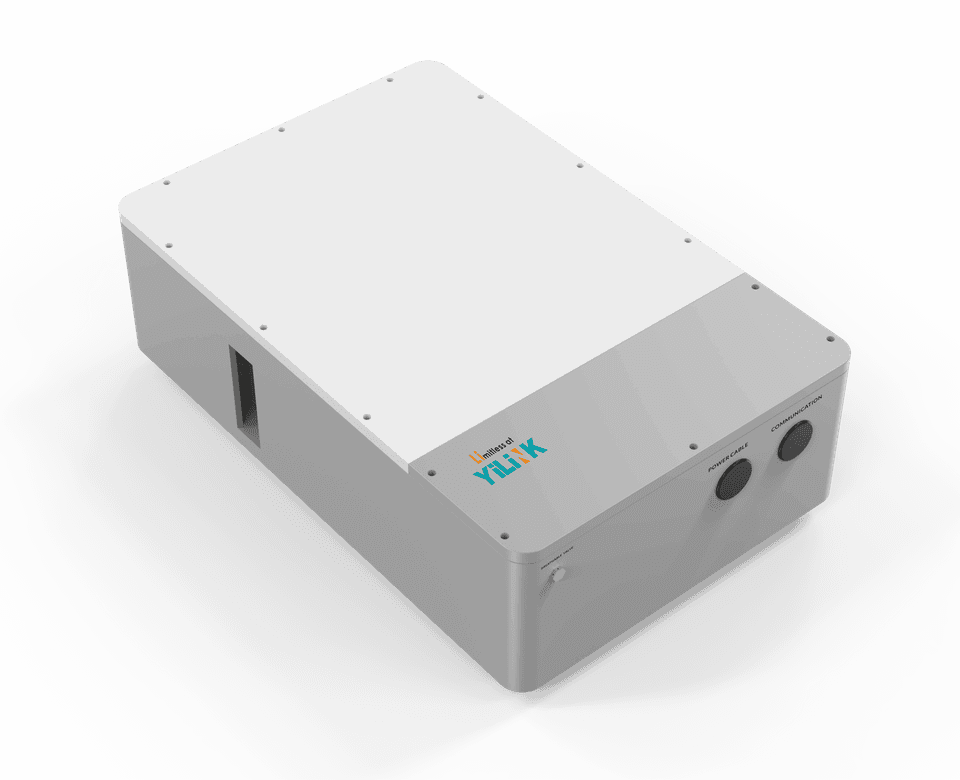

Yilink iPower Pro P48200
Weatherproof 48 V wall LiFePO4 battery — 200 Ah, 9.6 kWh
The P48200 is the only wall-mount model rated for outdoor installation. Its IP65 rating protects it from dust and water jets, which suits unheated garages, utility enclosures and exterior walls — a real consideration in our climate.
- Nominal energy
- 9.6 kWh Nominal energy
- IP rating
- IP65 IP rating
- Cycle life
- 6,000+ Cycle life
- Max. output power
- 4.8 kW Max. output power
The same 48 V 200 Ah platform as the W48200, in a sealed enclosure: brand-new Grade A cells, intelligent Panasonic BMS, more than 6,000 cycles and efficiency above 99.5%. It carries the same two ANSI/CAN/UL 1973 certificates, American and Canadian.
Highlights
- IP65 rated — indoor or outdoor installation
- Brand-new Grade A LiFePO4 cells — maximum safety and longevity
- Intelligent BMS with Panasonic IC — protection from cell to pack
- Expandable to 15 units in parallel (144 kWh)
- 100 Ah, 150 Ah and 200 Ah variants in the same chassis
- CAN, RS485, RS232 and dry-contact communication
- Two ANSI/CAN/UL 1973 certificates — United States and Canada
- 10-year manufacturer warranty
Installation
- Type
- Indoor or outdoor wall mount
- Sealing
- IP65 — protected against dust and water jets
- Variants
- YL-P48100, YL-P48150 and YL-P48200
Technical specifications
| Chemistry | Lithium iron phosphate (LiFePO4) |
|---|---|
| Cells | Brand-new Grade A, premium quality |
| Nominal voltage | 48 V (range: 37.5 – 54.75 V) |
| Nominal capacity | 200 Ah |
| Nominal energy | 9.6 kWh |
| Max. output power | 4.8 kW |
| Recommended charge current | 40 A |
| Max. continuous charge current | 100 A |
| Max. continuous discharge current | 100 A |
| Charge/discharge efficiency | ≥ 99.5% @ 0.2C |
| Monthly self-discharge | ≤ 2% @ 25 °C |
| Cycle life | More than 6,000 cycles (0.2C, 80% DoD, 25 °C) |
| Charging temperature | 0 to 55 °C |
| Discharging temperature | −20 to 60 °C |
| IP rating | IP65 (indoor or outdoor) |
| BMS | Intelligent, high-precision Panasonic IC, multiple protections from cell to pack |
| Communication | CAN / RS485 / RS232 / dry contact |
| Parallel capability | Up to 15 units (expandable to 144 kWh) |
| Net weight | 92 kg |
| Dimensions (W × D × H) | 520 × 800 × 230 mm |
| Installation | Wall mount, indoor or outdoor |
| Warranty | 10 years, manufacturer |
Certifications and safety
- UL 9540A
- UL 1973
- UN 38.3
- RoHS
- IEC 62619
- CE-IEC 61000
- IEC 62040
- MSDS
UL file MH67091
- United States
- UL-US-2434729-0
- Canada
- UL-CA-2426865-0
- Issue date
- 2024-09-08
Warranty and support
10-year manufacturer warranty. Technical support and after-sales service provided by Yilink Canada, with a reply within 24 hours and direct access to the factory engineers.
Compatible inverters
Proven communication with the main hybrid and off-grid inverters:
- Deye
- Growatt
- Sol-Ark
- SunSynk
- Victron
- Voltronic
- Goodwe
- Luxpower
- Sofar
- SMA
- Schneider
- Solis
- TBB
- INVT
