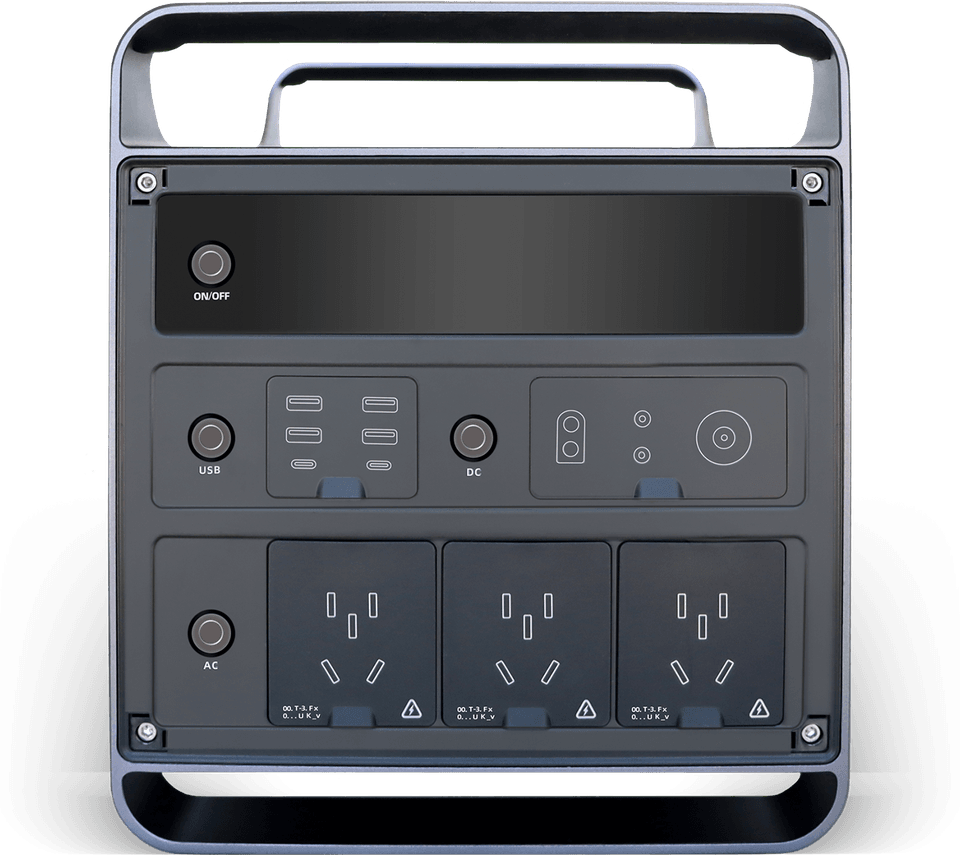

Yilink M2000
Portable power station — 2008.8 Wh, 2000 W
The M2000 steps outside fixed residential storage: it is a portable station for the outdoors, the job site, the trailer or short-term backup. It runs on a semi-solid-state battery, denser and safer than lithium iron phosphate.
- Capacity
- 2008.8 Wh Capacity
- Rated power
- 2000 W Rated power
- Max. solar charging
- 1000 W Max. solar charging
- Cycle life
- 1,000+ Cycle life
2000 W of pure sine wave output, a gallium-nitride inverter reaching 96% efficiency, and a full recharge in an hour and a half from mains. The system expands to 16 kW of output and 20 kWh of reserve.
Highlights
- Semi-solid-state battery — 30 to 50% denser than LiFePO4
- 2000 W pure sine wave, 100 – 240 V output
- GaN inverter — up to 96% efficiency and 50% less heat
- Mains charging up to 1600 W: an hour and a half to 100%
- Solar charging up to 1000 W, or from a car socket
- Six USB ports including two 100 W USB-C PD 3.0
- Triple BMS, EMS and CMS management with redundancy
- Expandable to 16 kW of output and 20 kWh of reserve
Installation
- Type
- Portable station, no fixed installation
- Lighting
- Four-mode LED, including SOS and strobe
- Expansion
- Up to 16 kW of output and 20 kWh of reserve
Technical specifications
| Battery type | Semi-solid-state lithium-ion |
|---|---|
| Battery voltage | 32.4 V |
| Capacity | 62 Ah — 2008.8 Wh |
| Cycle life | ≥ 1,000 cycles |
| BMS protections | Over-voltage, under-voltage, high and low temperature, three-level over-current, short circuit |
| AC output | 100 – 240 V · 50/60 Hz · pure sine wave |
| Rated AC power | 2000 W |
| DC output | DC5521 12 V 6 A · car socket 12 V 12 A |
| USB-A ports | 2 × 5 V 2.4 A · 2 × QC 2.0/3.0/4.0 up to 60 W |
| USB-C ports | 2 × PD 3.0 up to 100 W |
| LED lighting | 5 W · 10 W · SOS · strobe, cool or warm white |
| Mains charging | 100 – 240 V, 1600 W max. |
| Vehicle charging | 12.5 – 15 V / 8 A, 100 W max. |
| Solar charging | 18 – 48 V / 20 A, 1000 W max. |
| Inverter efficiency | Up to 96% (GaN technology) |
| Management | Redundant BMS, EMS and CMS |
Certifications and safety
- UL 9540A
- UL 1973
- UN 38.3
- RoHS
- IEC 62619
- CE-IEC 61000
- IEC 62040
- MSDS
Warranty and support
10-year manufacturer warranty. Technical support and after-sales service provided by Yilink Canada, with a reply within 24 hours and direct access to the factory engineers.
